Description

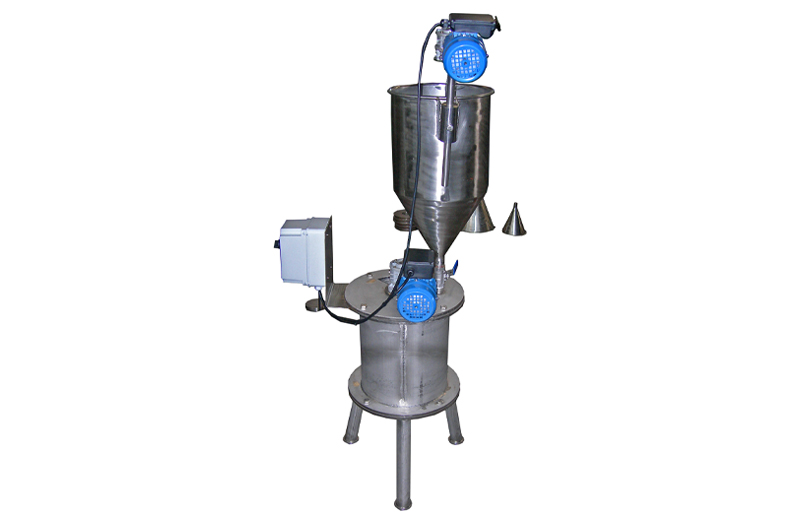

R.S.E TWO WAY SLURRY SAMPLE DIVIDER

Separates a slurry sample into 2 divided samples

The R.S.E two way slurry sample divider is used in the mining industry to split slurry sample into 2 divisions

Mine Laboratories are tasked at splitting the slurry sample to get a representative amount of sample for testing.

This collected sample is then tested to determine the different mineral content in the sample.

The slurry sample divider is complete with a 10 liter stainless steel feed hopper, motorized liquid agitator
( overhead stirrer ) with 70mm propeller, ball valve at base of feed hopper 1″ stainless steel,
2 way stainless steel slurry sample vessel 30 liter capacity, 42mm slurry sample cutter, 350mm high
floor stand stainless steel, geared motor drive to drive the splitting cutter.
Control panel with start and stop switches, timer, overload.
Power :- 220 volt 50 HZ.
