Description
MODELS :-
SSVB – 500
SSVB – 250
SSVB – 200
SSVB – 150
SSVB – 100
SSVB – 75
SSVB – 55
SSVB – 45
SSVB – 30
SSVB – 25
APPLICATION
Locally manufactured Laboratory V Blenders for dry milling / blending
of mining materials for test work.

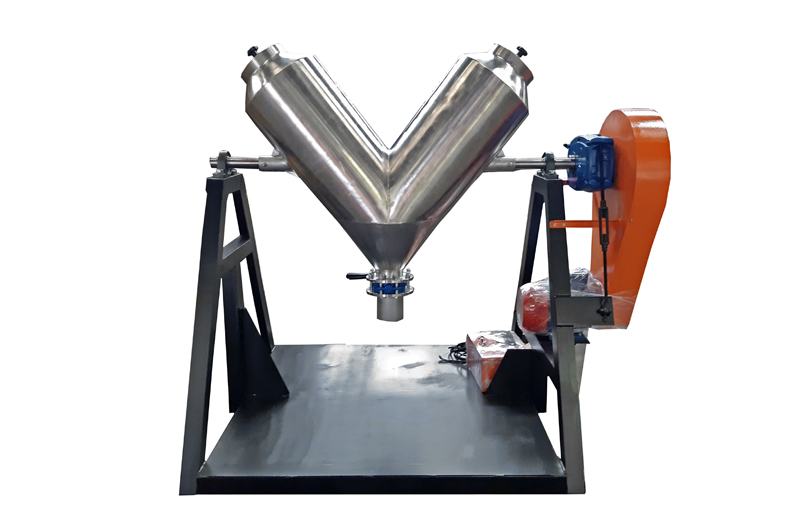

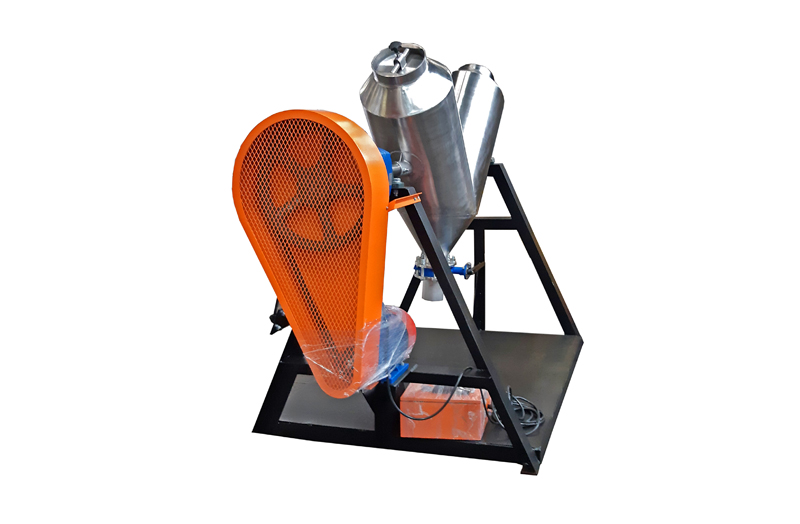

All the V Blenders fabricated from stainless steel with various sample volumes as shown above in different models available.
The V Blenders are mounted on a steel base frame support.
The V Blenders are attached to a gearbox and motor combination drive .
The V Blenders rotate on a 360 degree axis on the base frame at a set rotational speed of 30 rpm.
The feed material is feed into either of the feed inlet ports on top the V Blenders.
The ports are there to assist in the cleaning the V Blender between samples.
The V Blenders have an outlet control valve which allows you to discharge the blended sample into a hopper or bucket.
Each V Blender is fitted with a separate control panel which houses a on switch, emergency stop switch, timer, overload indication light.
The V Blenders can also be fabricated from mild steel.
Power supply :- 380Volt 50 Hz.
