Description

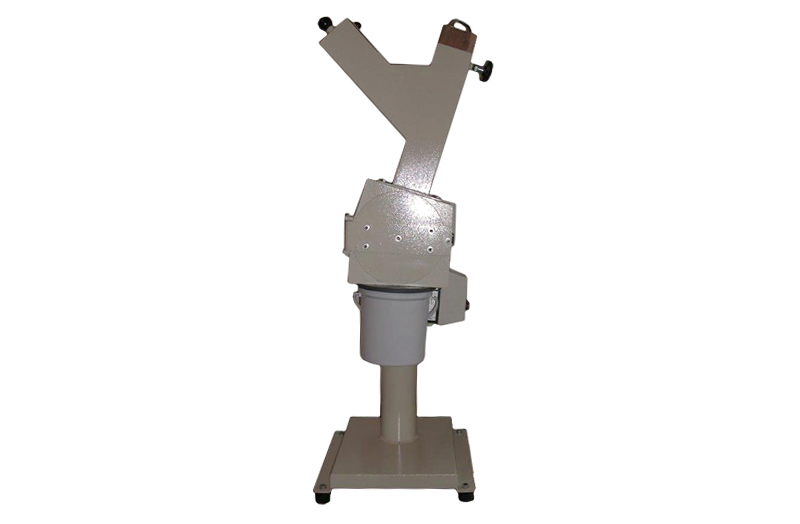

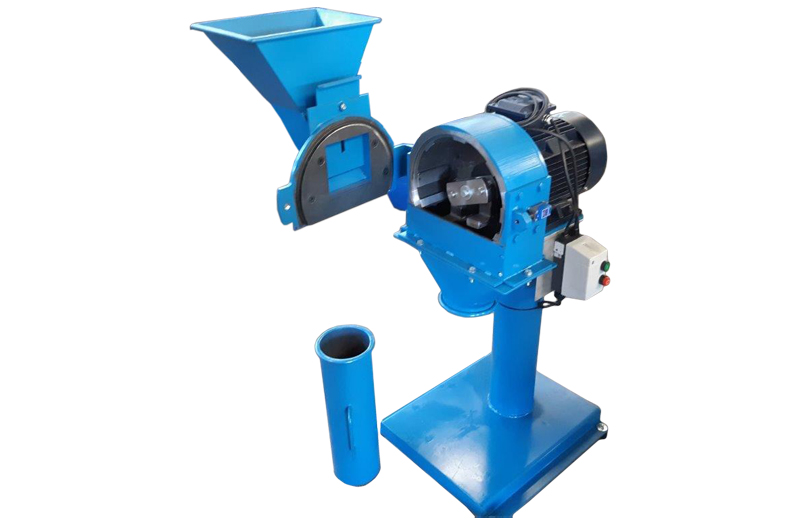

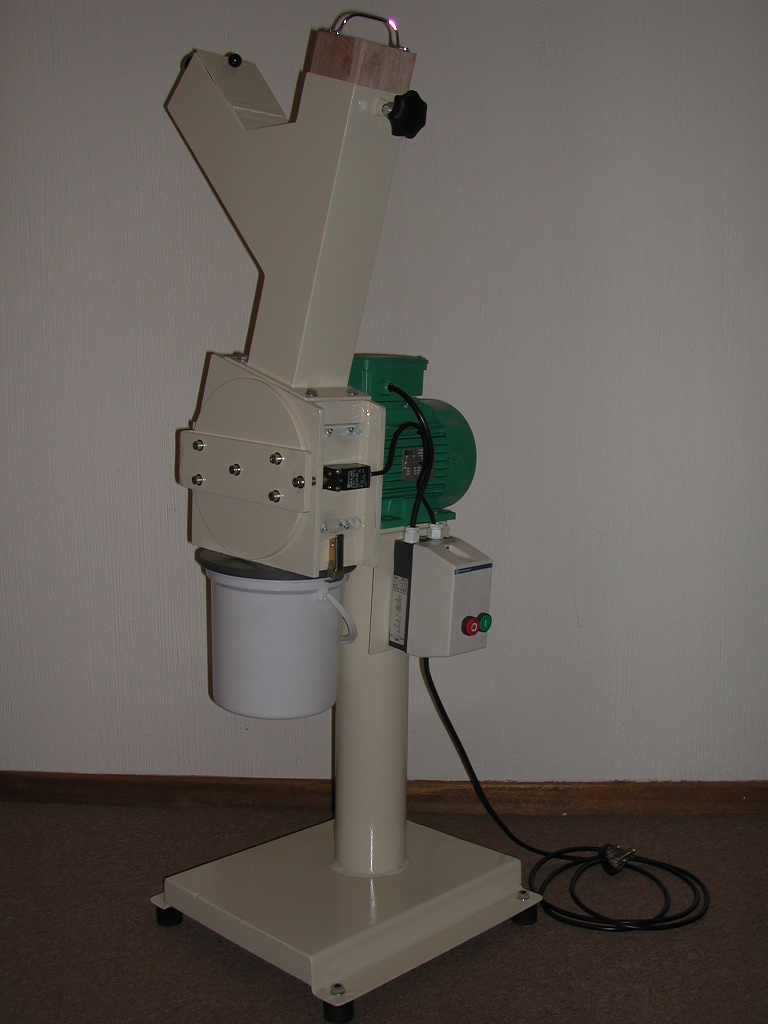

RSE 300 OVERHUNG HAMMER MILL:

300 Overhung Hammer Mill is used in the Coal Industry, Research Institutions, mineral ore and Brick Industry requiring
size reduction of laboratory sample product.
The Mill is also used in a semi-production environment.

The 300 Overhung Hammer Mill is mounted on a floor standing stand with a direct coupled 5,5 KW 380 Volt motor drive.
The Mill is provided with a feed chute which feed the sample directly into the center of the rotor which has three
hardened hammers.
The sample is crushed through a perforated plate screen and discharges through a circular discharge spout into the stainless steel or mild steel bin.

The Hammer Mill is supplied with 2 bottom screens.

The Hammer Mill have a electrical control panel with a on switch, off switch and overload cut out switch.

The front hinged door is fitted with a limit switch to cut the Mill off when the door is opened.

Average material size is 50mm

Discharge material size is dependent on bottom screen size.
